Complexity Profile Graph

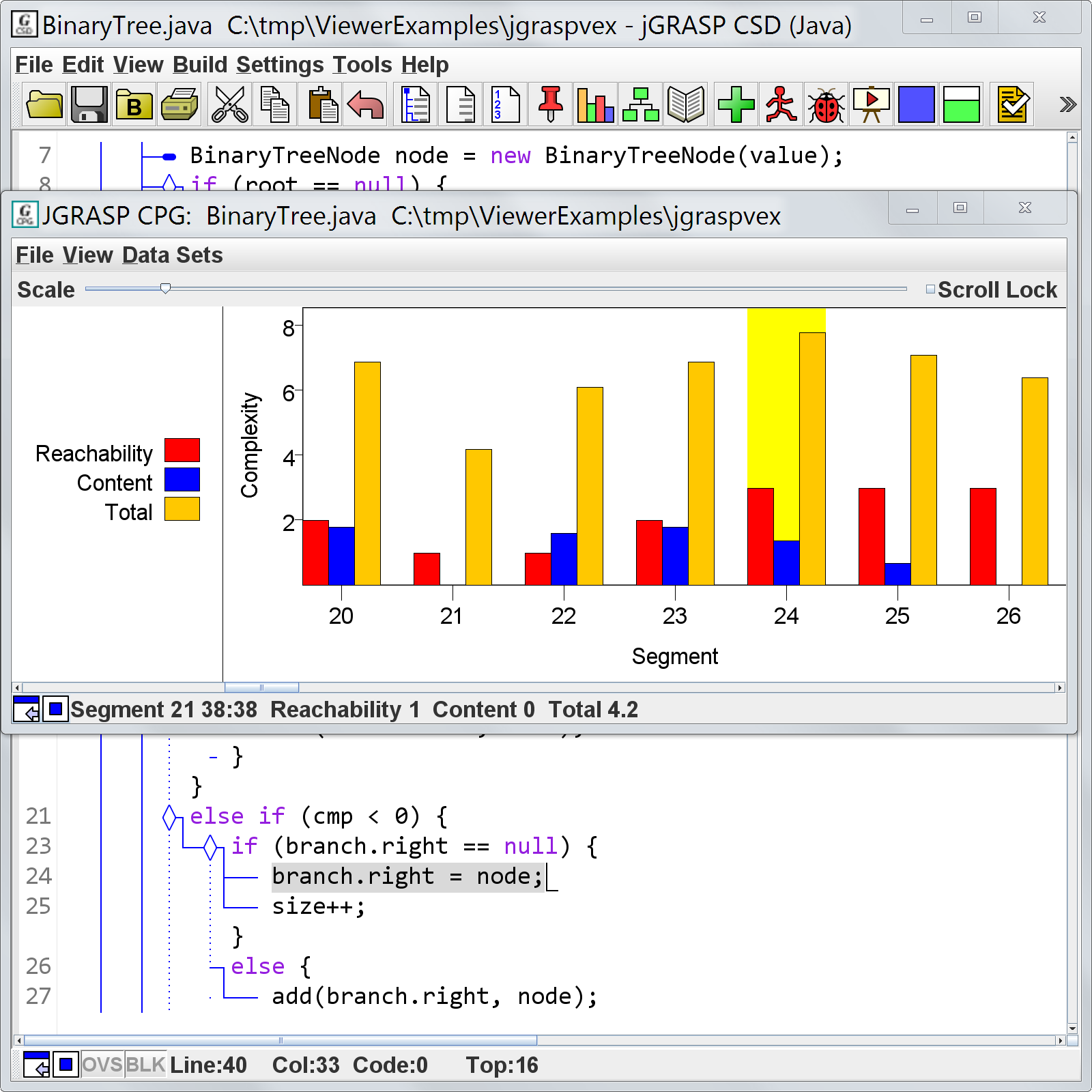

The Complexity Profile Graph (CPG) is a unique statement-level complexity diagram. jGRASP generates CPGs from Java and Ada source code. The metric includes common measures, such as reachability and content complexity, which can be displayed individually. The CPG is integrated with the editing window in jGRASP so that highlighting a section of CPG will highlight the corresponding section of source code, and vice versa. They also scroll together, and the current visible portion of the editing window is shown in the CPG window.
